Intelligent Power Distribution
MICO+ is the intelligent power distribution module from Murrelektronik for 24 and 48 V DC applications. This cabinet component monitors currents on up to four channels. It indicates when approaching the maximum load and it shuts the channel off if there's a short circuits or overload.
When 90% of the selected current load on a channel is reached, the LED blinks green. This helps to prevent wear of motor valves at an early stage if channels fail during operation because of an increased demand of power.
Up to 20,000 µF can be loaded per channel. So it's possible to monitor a number of high capacitive loads with one device.
MICO eliminates start-up spikes with a cascading start of individual current paths. This allows you to size your power supplies to your average use as opposed to your start up needs.

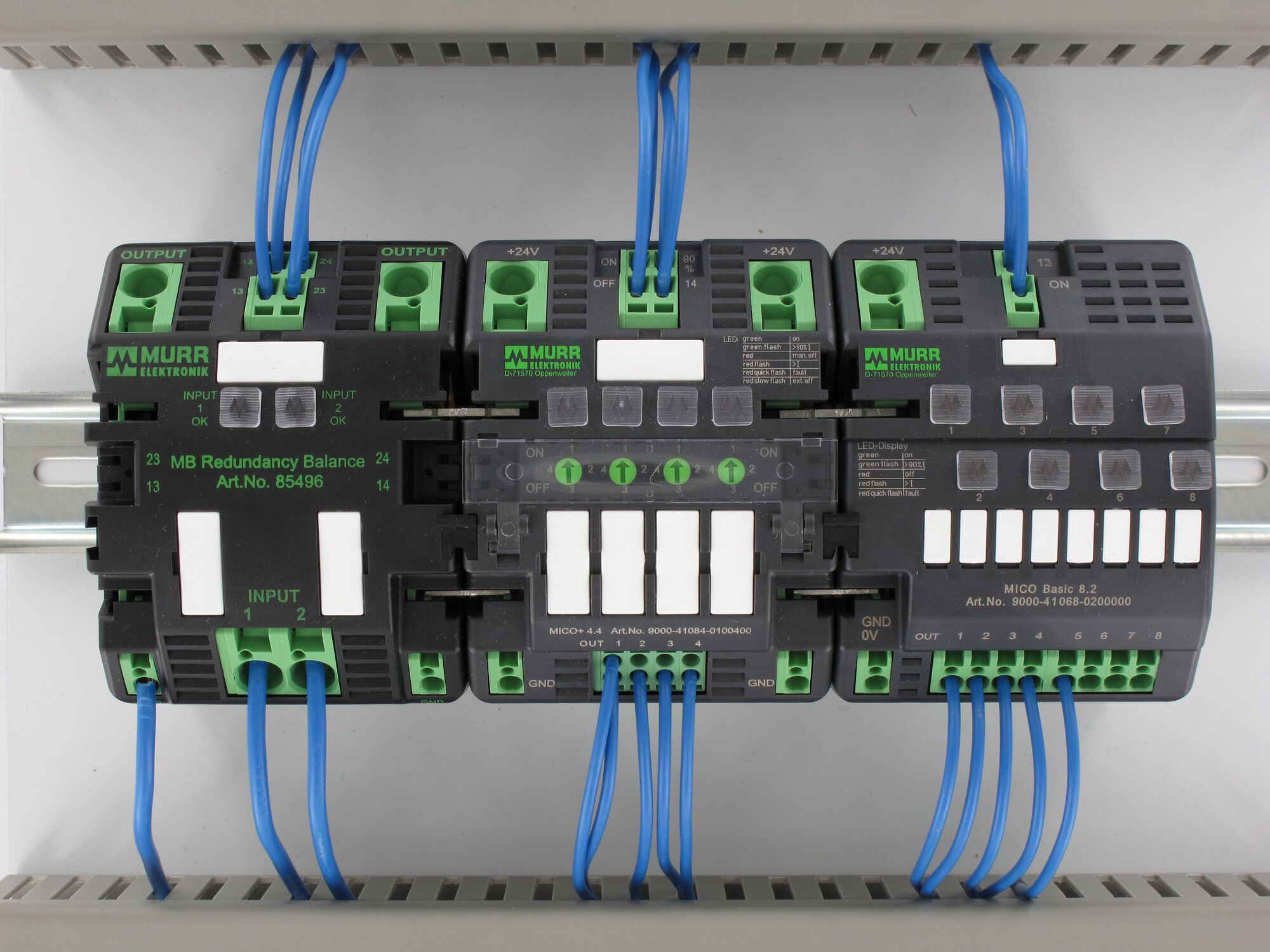

Multiple MICO modules can be connected via the integrated bridging system. This reduces both installation time and the potential for wiring errors.
Spring clamp terminals enable installation in the shortest time possible. They are maintenance-free and vibration resistant. Periodic maintenance to retighten screw terminals is no longer required.
Each channel can be switched on or off by pressing a button.
MICO saves the operating condition of each channel even during loss of power. This simplifies troubleshooting when the channel is brought back online.
MB Redundancy modules have worldwide approvals. This is very important for companies working internationally.
